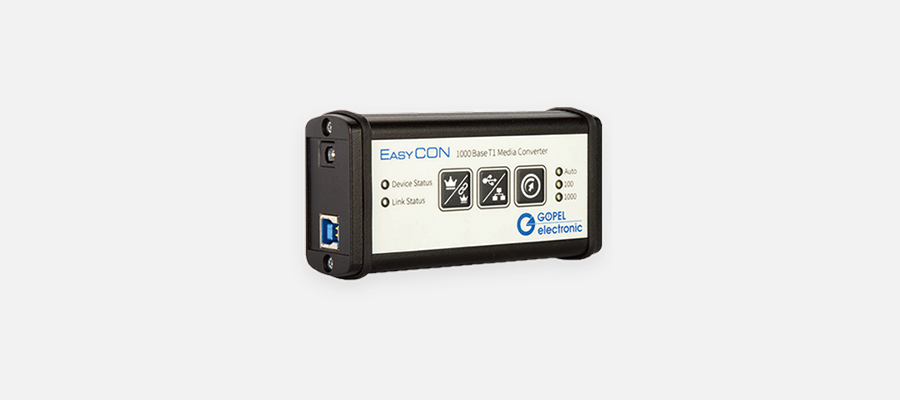

EasyCON

1000Base-T1 / 100Base-Tx Media Converter

EasyCON 특징

  • 1000Base-T1, 100Base-Tx, Broad-R-Reach Media Converter (USB 3.0 to Automotive Ethernet / Ethernet, Ethernet to Automotive Ethernet, Automotive Ethernet to Ethernet)
  • Automatic 통신속도 설정
  • Master / Slave 설정

제품 구성 및 사양

제품 사양
EasyCON HW Physical layer Automotive Ethernet 1000 / 100 Base-T1
standard 1000Base-T / 100Base-Tx Ethernet
Connection RJ45 connector
(adapter to D-Sub 9-pin included)
AC input voltage
(wall plug transformer)		 90 ~ 264 V
AC input current
(wall plug transformer)		 max. 250 mA
Operating temperature -40 ~ 80 °C
Protection class IP20
Demension (WxHxD) 60 x 35 x 114 mm
Weight 160 g
Cable USB cable x1
DSUB to RJ45 x1
Power Power Adaptor x 1
Software (CD) Driver Installation CD x1
